Flat Roof Waterproofing in Petaling Jaya & Klang Valley

Specialist Flat Roof Waterproofing in Petaling Jaya and Klang Valley

Flat roofs are among the most vulnerable structures in Malaysian homes. Unlike pitched roofs that shed water quickly, flat roofs allow water to pond on the surface, testing every joint, crack, and membrane for weaknesses. In a country that receives over 2,500 millimetres of rainfall annually — much of it in intense monsoon downpours — flat roof waterproofing is not optional. It is the single most important investment you can make to protect the rooms below.

Xoo Roofing provides specialist flat roof waterproofing across Petaling Jaya, Shah Alam, Subang Jaya, Puchong, Damansara, and the wider Klang Valley. We offer three proven waterproofing systems — torch-on bituminous membrane, PU injection grouting, and elastomeric coating — each suited to different flat roof situations. All our flat roof waterproofing projects come with a 5-year workmanship warranty and are verified with a 48-hour ponding test.

Flat Roofs in Malaysian Homes: Where They Are and Why They Leak

Many homeowners do not realise how many flat roof surfaces their property has. While the main roof may be pitched, flat sections are extremely common throughout Malaysian residential architecture.

Car Porches

The car porch is one of the most common flat roof structures in Malaysian terrace houses and semi-detached homes. Typically a concrete slab covered with tiles, the car porch is exposed to direct rainfall, intense sun, and sometimes vehicular weight. Our car porch waterproofing guide covers the specific considerations for this structure in detail. Waterproofing failure in car porches causes leaks into the porch ceiling and can damage electrical wiring, light fittings, and the ceiling boards below.

Balconies and Roof Terraces

Upper-floor balconies and roof terraces are flat surfaces that are directly exposed to weather. They are often used as drying areas, prayer spaces, or leisure areas, meaning they receive regular foot traffic that can damage waterproofing membranes over time.

Flat Roof Sections Between Split Levels

Many Malaysian homes feature split-level designs where different sections of the house have different roof heights. The flat roof section between these levels is often overlooked during maintenance and is a frequent source of leaks into the rooms below.

Concrete Aprons and Walkways

Concrete aprons along the sides of the house and walkways between buildings are flat surfaces that channel water toward drains. When waterproofing fails on these surfaces, water seeps through the concrete into the rooms or spaces below.

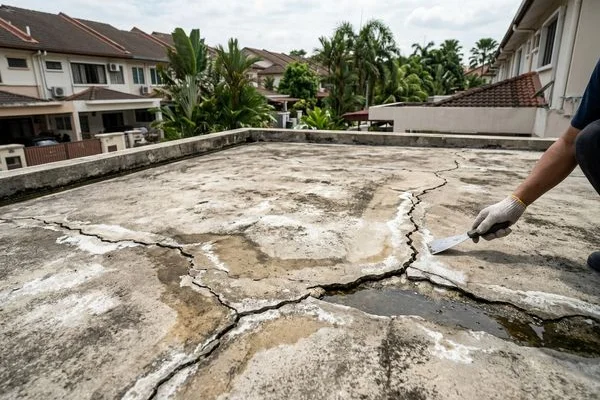

Why Flat Roofs Are Harder to Waterproof

Flat roof waterproofing is fundamentally different from pitched roof waterproofing, and many general contractors apply the wrong techniques because they do not understand these differences.

Water Ponding

On a pitched roof, water runs off almost immediately. On a flat roof, water sits on the surface — sometimes for hours or even days if drainage is poor. This prolonged water contact means the waterproofing membrane must be capable of withstanding continuous immersion, not just occasional rainfall.

Thermal Movement

Flat concrete roofs absorb enormous amounts of heat from the sun. Surface temperatures can exceed 60°C during the afternoon. When evening thunderstorms bring sudden cooling, the concrete slab contracts. This daily thermal cycling creates movement in the slab that can crack rigid waterproofing membranes and open gaps at joints and edges.

No Tile Cover Protection

Pitched roofs have tiles that protect the waterproofing membrane beneath from direct sun and rain exposure. Flat roofs typically have their waterproofing membrane as the outermost layer, directly exposed to UV radiation, rain impact, foot traffic, and debris. This direct exposure accelerates degradation.

Poor Drainage Design

Many flat roofs in Malaysian homes have inadequate drainage. Water collects in low spots, around drain outlets, and along edges where the slope is insufficient. These ponding areas place the greatest stress on the waterproofing membrane and are where failures most commonly occur.

Our Three Waterproofing Systems for Flat Roofs

Xoo Roofing offers three proven waterproofing systems for flat roofs. For a broader overview, our comparison of waterproofing methods explains the strengths of each approach. We select the most appropriate system based on the condition of your roof, the severity of the leak, the type of use the surface receives, and your budget.

Torch-On Bituminous Membrane

Torch-on membrane is considered the gold standard for flat roof waterproofing. It consists of a thick, flexible bituminous sheet reinforced with polyester or fibreglass. The membrane is heated with a gas torch and fused directly to the primed concrete surface, creating an extremely strong, seamless bond.

Best suited for:

• New flat roofs or complete re-waterproofing projects
• Car porches and roof terraces with heavy use
• Areas with severe ponding problems
• Long-term protection (15 to 20 years with proper maintenance)

Advantages:

• Seamless application eliminates weak joints
• Extremely resistant to water, UV, and mechanical damage
• Thick construction tolerates minor movement and settlement
• Can be applied in multiple layers for extra protection
• Proven track record in tropical climates worldwide

Application process:

1. Surface is cleaned, repaired, and levelled
2. Bituminous primer is applied and allowed to cure
3. Torch-on membrane is rolled out and heated section by section
4. Overlaps are sealed with torch heat for a continuous barrier
5. UV-resistant topcoat or gravel ballast is applied for sun protection

PU Injection Grouting

PU (polyurethane) injection grouting is a specialised technique for stopping active leaks through concrete slabs. Rather than applying waterproofing on top of the slab, PU grouting seals cracks and voids from within the concrete structure itself.

Best suited for:

• Active leaks that cannot wait for surface waterproofing to cure
• Cracks in concrete slabs that are the source of water entry
• Areas where external surface access is difficult
• Remedial treatment in combination with surface waterproofing

How it works:

1. Injection ports are drilled into the concrete along the crack line
2. A polyurethane resin is injected under pressure into each port
3. The resin flows into the crack, expanding to fill the entire void
4. As the resin cures, it forms a flexible, watertight plug within the crack
5. The resin remains flexible, accommodating future minor movement

PU injection grouting is often used in combination with surface waterproofing for a belt-and-braces approach. The injection stops the active leak immediately, while the surface membrane prevents future water entry from other points.

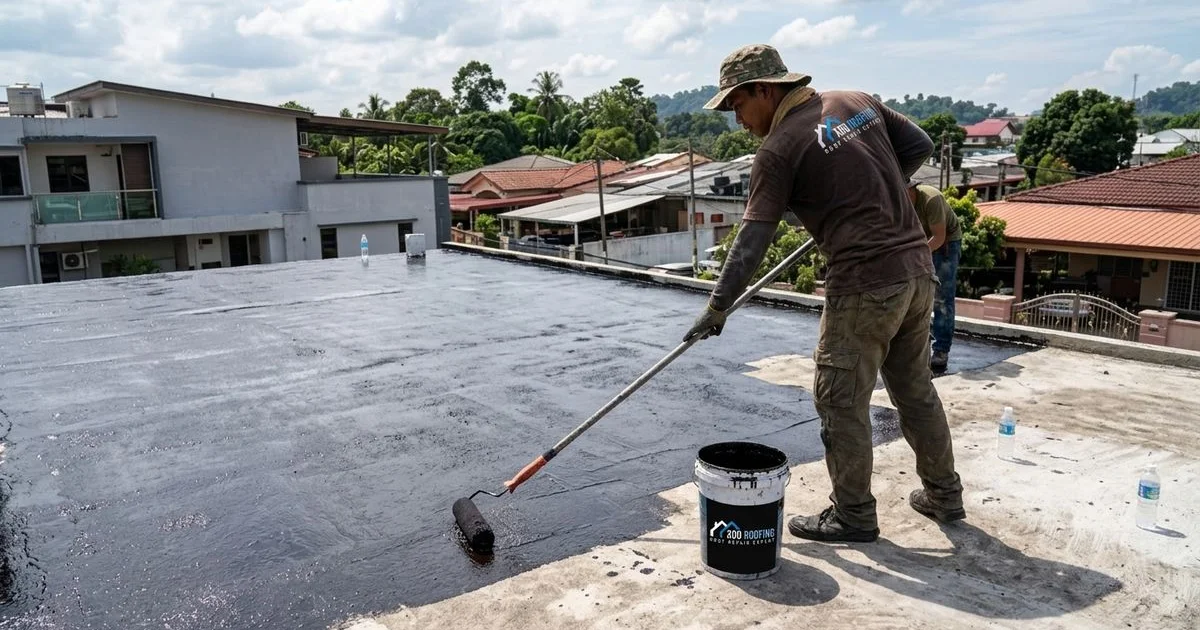

Elastomeric Liquid Membrane

Elastomeric coating is a liquid-applied rubber membrane that cures to form a seamless, flexible, waterproof skin over the entire roof surface. It is applied with rollers or spray equipment and conforms to every contour, corner, and detail of the roof.

Best suited for:

• Roofs with complex shapes, multiple penetrations, or irregular surfaces
• Budget-conscious projects where torch-on is not feasible
• Re-coating over existing waterproofing that is partially sound
• Balconies and roof terraces where a smooth, clean finish is desired

Advantages:

• Seamless coverage with no joints or overlaps
• Highly flexible — stretches up to 300% without cracking
• Easy to apply around penetrations, corners, and edges
• Available in reflective colours that reduce heat absorption
• Can be recoated to extend life without full removal

Surface Preparation: The Foundation of Successful Waterproofing

The number one reason flat roof waterproofing fails is inadequate surface preparation. A waterproofing membrane is only as good as the surface it is bonded to. At Xoo Roofing, we invest significant time and effort in preparing the surface before any waterproofing is applied.

Cleaning

The concrete surface is thoroughly cleaned with high-pressure water to remove all dirt, dust, loose material, oil stains, and biological growth. Any existing failed waterproofing is stripped if it has lost adhesion.

Crack Repair

Structural and non-structural cracks in the concrete are repaired with epoxy or polyurethane filler. Cracks wider than 2mm may require PU injection grouting for a thorough repair. Ignoring cracks before waterproofing is like painting over rust — the problem will return.

Levelling

Low spots where water ponds are levelled with a cement-based screed to improve drainage. Correct falls toward drain outlets are established to minimise ponding after waterproofing is complete.

Priming

A compatible primer is applied to the clean, dry, repaired surface. The primer enhances the chemical bond between the concrete and the waterproofing membrane, ensuring long-lasting adhesion.

The 48-Hour Ponding Test

Every flat roof waterproofing project completed by Xoo Roofing undergoes a 48-hour ponding test before handover. This is the most rigorous verification method for flat roof waterproofing.

The process is simple but thorough: all drain outlets are temporarily blocked, and the roof is flooded with 50 to 100mm of water. The water is left standing for 48 hours. After the test period, the ceiling below is inspected for any signs of moisture. If the ceiling is completely dry, the waterproofing has passed. If any dampness is detected, the waterproofing is re-applied in the affected area and the test is repeated.

This ponding test goes far beyond the quick spray test that many contractors use. It subjects the entire waterproofing system to sustained water pressure, revealing any weaknesses that a brief water spray would miss.

UV Protection and Heat Reduction

Flat roofs in Malaysia are exposed to direct, intense sunlight for most of the day. Without UV protection, even the best waterproofing membrane will degrade over time. All our flat roof waterproofing systems include a UV-resistant topcoat as the final layer.

Our reflective topcoats serve a dual purpose: they protect the waterproofing membrane from UV degradation, and they reflect solar heat away from the roof surface. This reflective property can reduce roof surface temperatures by up to 15°C, which in turn lowers the temperature of the rooms below and reduces air conditioning energy consumption.

Maintenance After Flat Roof Waterproofing

To maximise the lifespan of your flat roof waterproofing system, we recommend the following maintenance practices:

• Keep the surface clean — remove leaves, debris, and standing water regularly
• Check drains quarterly — ensure all drain outlets are clear and flowing
• Inspect annually — look for cracks, blisters, or peeling in the membrane
• Avoid placing sharp objects — pot plant stands, tools, or furniture with sharp legs can puncture the membrane
• Schedule professional inspection every 3 years — early detection of wear allows maintenance coats before the primary system is compromised

Areas We Serve

Xoo Roofing provides specialist flat roof waterproofing across Petaling Jaya, Shah Alam, Subang Jaya, Puchong, Damansara, Bangsar, Kelana Jaya, USJ, Ara Damansara, Kota Damansara, Tropicana, Bandar Utama, Seri Kembangan, and all surrounding areas in Selangor.

Contact us today for a free flat roof assessment. Protect your property with a waterproofing system backed by a 5-year warranty and verified with a 48-hour ponding test.
