Car Porch Waterproofing Complete Guide

Our team at Xoo Roofing, which began as a humble group of five specialists in 2015 and grew into a leading Klang Valley provider, regularly sees homeowners underestimate the vulnerability of their concrete car porches. This car porch waterproofing complete guide provides the exact steps needed to protect your property from heavy Malaysian weather.

Klang Valley experiences an intense equatorial climate with annual rainfall regularly exceeding 2,200 mm. These constant downpours turn minor concrete cracks into active indoor leaks rapidly.

We consider early intervention the key to saving money on extensive concrete repairs. Proper protection is a fundamental part of comprehensive flat roof waterproofing for any modern home.

We will explore why these specific roofs fail so frequently, then break down the three most effective waterproofing methods. The following sections also outline clear maintenance steps to extend the lifespan of your roof.

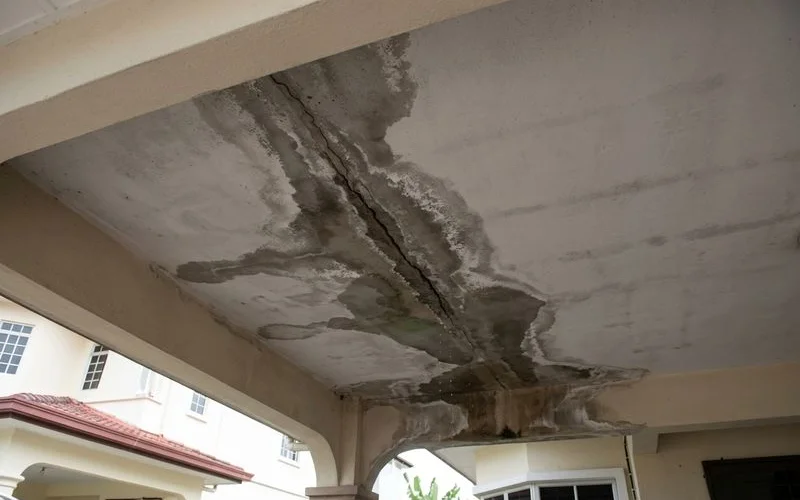

Why Car Porches Are Prone to Leaking

Our experience shows that car porch roofs face a unique set of challenges. These specific conditions make them particularly vulnerable to water problems compared to pitched roofs.

Flat Design with Minimal Slope

Unlike your main roof, which has a steep pitch to shed water quickly, your car porch has a nearly flat surface. While there should be a slight slope toward the drainage points, many car porches have inadequate fall.

This design flaw leads to water pooling after rain. Standing water puts continuous pressure on the waterproofing and accelerates its deterioration.

Ponding water struggles to evaporate quickly in Malaysia’s 80% average humidity, giving moisture more time to penetrate the concrete.

Direct Sun Exposure

Car porches are typically fully exposed to the sun throughout the day. The intense UV radiation in Malaysia causes rapid degradation of waterproofing coatings, especially cheaper products.

Daily temperatures frequently peak above 32°C, causing the concrete slab to expand and contract rapidly. This constant thermal shock creates micro-cracks that develop into permanent leak pathways over time.

Foot Traffic and Load

Many homeowners use the top of their car porch as additional space. People frequently use this area for drying laundry, storing items, or even as a small terrace.

This regular foot traffic wears down the waterproofing coating much faster than a roof that remains isolated. Dragging heavy potted plants across the surface is a common cause of deep scratches that compromise the seal.

Construction Quality Issues

Unfortunately, developers often treat car porch waterproofing as an afterthought during initial construction. Builders might apply a minimal, low-quality skim coat to keep project costs down. This basic treatment usually begins to fail within just two to three years of the home being occupied.

Junction Failures

The critical junction is exactly where the car porch roof meets the main house wall. If contractors do not properly treat this junction with adequate flashing and a high-quality waterproofing overlap, water will find its way through. Rainwater naturally channels down the exterior wall and pools directly into this vulnerable gap between the two structures.

Choosing the Right Waterproofing System

For car porch waterproofing in Malaysia, three main systems dominate the market. Each option provides distinct advantages and limitations depending on your budget and existing roof condition.

Elastomeric Coating (Most Popular for Car Porches)

Elastomeric liquid coating is the most popular choice for car porch waterproofing in Malaysia. Technicians apply it as a liquid that cures to form a flexible, seamless membrane over the entire surface. Popular local brands like Pentens T-200 and Nippon Paint 955 Acrashield HB are widely used for this application.

Why it works well for car porches:

• Easy to apply to small or complex surfaces
• Seamless coverage eliminates joints where water could enter
• White or light-coloured coatings reflect heat effectively
• The material is flexible enough to bridge hairline cracks
• Recoating the surface is straightforward when needed
• It remains affordable compared to other advanced systems

We find that a quality elastomeric coating typically lasts 5 to 8 years in Malaysia before needing a fresh coat. The standard pricing ranges from RM 6 to RM 15 per square foot.

Torch-On Membrane

For car porches with persistent leak problems or where a longer-lasting solution is needed, a torch-on bituminous membrane provides superior protection. This system uses sheets made from modified bitumen, such as Atactic Polypropylene (APP) or Styrene Butadiene Styrene (SBS). Products like the Obaproof TO-1000 offer a thick, 4mm protective layer.

Advantages for car porches:

• Longer lifespan extending up to 15 or 20 years
• Highly resistant to water pressure and persistent pooling
• Handles heavy foot traffic much better than standard coatings
• Suitable for car porches that double as accessible terraces

The trade-off is a higher initial cost and the absolute need for highly skilled installation. Contractors must ensure a precise 1 to 2.5cm fluid overlap at the seams to prevent future debonding. However, for homeowners who want a permanent solution, this membrane is worth the investment.

Cementitious Waterproofing with Tiles

Some homeowners opt for a cementitious waterproofing layer topped with floor tiles on their car porch. This method costs between RM 5 and RM 8 per square foot for the chemical layer alone, before adding the price of tiles. It provides a durable, walkable surface with strong waterproof protection underneath.

Advantages:

• Highly attractive finished surface
• Extremely durable against regular foot traffic
• Ceramic tiles protect the waterproofing chemical from UV exposure

Disadvantages:

• Significantly more expensive due to hacking and tiling costs
• You must remove the tiles completely to repair any failed waterproofing underneath
• Porous grout lines can still allow water to reach the hidden waterproofing layer

Car Porch Waterproofing Complete Guide: The Application Process

Here is what you should expect when engaging a professional to waterproof your car porch.

Step 1: Surface Preparation

This is the most important step and contractors should never rush it. The existing surface must be thoroughly cleaned using a high-pressure water jet of at least 2000 psi.

This removes all dirt, algae, moss, old paint, or flaking waterproofing materials. Workers must fill and repair any cracks in the concrete before proceeding.

The surface requires a complete drying period before any new waterproofing is applied.

We always assess whether an existing failed layer should be removed entirely or if the new system can sit over it. A well-bonded existing layer can often remain, but loose or peeling material requires complete removal.

Step 2: Crack and Joint Treatment

Before applying the main waterproofing system, all cracks, construction joints, and wall junctions need pre-treatment. This process typically involves applying a reinforcing fabric tape embedded in a specialized waterproofing compound over these vulnerable areas. Sometimes, technicians inject polyurethane (PU) sealant into deeper cracks for extra stability.

The junction where the car porch meets the main house wall is especially critical. The new waterproofing material must extend at least 150mm up the wall surface. This upward extension prevents rainwater from entering at the horizontal joint.

Step 3: Primer Application

A primer is applied to the prepared surface to significantly improve the adhesion of the main waterproofing system. The specific type of primer depends heavily on the chosen waterproofing chemical. It is essential to allow this primer layer to dry completely, which usually takes 2 to 4 hours in tropical weather.

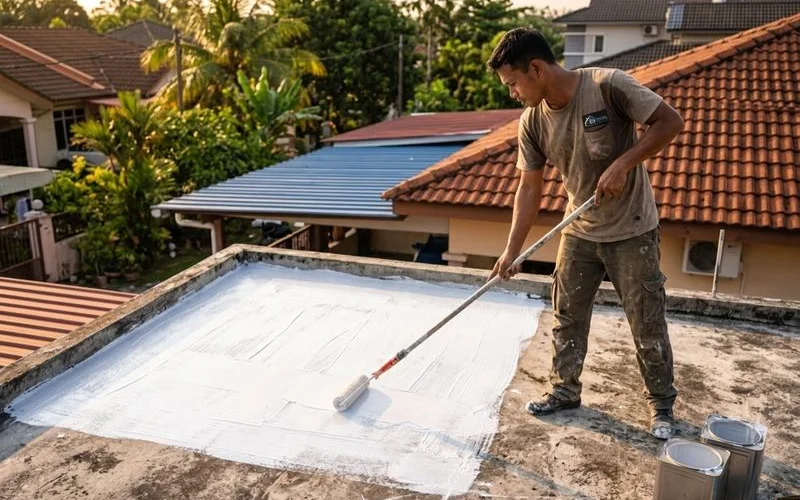

Step 4: Waterproofing Application

The main waterproofing material is applied strictly according to the manufacturer’s specifications. For elastomeric coatings, this typically involves two to three separate coats applied in alternating directions.

This cross-hatching method ensures complete and even coverage across the slab. Each individual coat must be allowed to cure fully for 24 to 48 hours before the next is added.

For torch-on membranes, the heavy bitumen sheets are rolled out and carefully aligned. Installers then use a gas blowtorch to heat-bond the material to the surface and to the overlapping edges.

Step 5: Top Coat (for Coating Systems)

A UV-resistant top coat is applied to protect the underlying waterproofing from rapid solar degradation. This is the final layer that gives the finish its visible colour. White remains the most popular choice in Malaysia because it reflects up to 85% of solar heat, keeping the porch noticeably cooler.

Step 6: Quality Check and Drainage Test

Once the new waterproofing has fully cured, your contractor should perform a comprehensive flood test. This involves blocking the drainage pipes and deliberately flooding the surface with water for 24 to 48 hours. We highly recommend this step to verify that no microscopic leaks occur.

Cost of Car Porch Waterproofing

The total cost of waterproofing a car porch in Malaysia varies based on the system chosen and the condition of the existing surface.

System	Cost per Square Foot	Typical Car Porch Total
Elastomeric coating	RM 8 - RM 15	RM 1,500 - RM 3,500
Torch-on membrane	RM 18 - RM 30	RM 3,500 - RM 7,000
Cementitious + tiles	RM 25 - RM 45	RM 5,000 - RM 10,000

These baseline prices assume a typical single car porch measuring approximately 200 to 250 square feet. Double car porches will naturally cost proportionally more due to the larger surface area.

You should expect additional costs if significant concrete repair or hacking is needed before the new waterproofing can be safely applied.

Maintaining Your Car Porch Waterproofing

To get the maximum life from your car porch waterproofing investment, follow these daily and annual practices.

Keep it clean. Sweep the surface regularly and remove any fallen leaves, dirt, or debris that accumulates. Organic material that sits on the surface retains moisture and accelerates the chemical deterioration of the membrane.

Clear drains promptly. Check your car porch drains immediately after every heavy rainstorm. Blocked drains cause rapid water pooling, which is the number one enemy of any flat roof waterproofing system.

Avoid sharp objects. Be incredibly careful not to drag sharp or heavy objects across the waterproofed surface. Punctures from metal chair legs or heavy pots compromise the waterproof barrier instantly.

Schedule annual inspections. Have your car porch waterproofing inspected once a year, ideally just before the November monsoon season begins. A trained professional can spot early signs of deterioration that an untrained eye might easily miss.

Recoat proactively. When your elastomeric coating starts showing a powdery white residue known as “chalking”, it is time to act. Schedule a recoat when you notice this thinning or minor surface cracking. Recoating over a still-functional layer is dramatically cheaper than waiting for complete structural failure.

Common Mistakes to Avoid

Our team constantly repairs failed DIY projects or poor workmanship from inexperienced contractors. Avoid these specific pitfalls to ensure a lasting result.

Applying waterproofing over a wet surface. Moisture trapped under the new waterproofing will inevitably cause bubbling and complete adhesion failure. Always ensure the concrete surface is 100% dry before beginning the primer coat.

Using cheap, untested products. The building materials market in Malaysia is flooded with low-quality, uncertified products. Stick to established, certified brands with proven track records in high-heat tropical climates.

Skipping thorough surface preparation. Applying expensive waterproofing over a dirty, cracked, or poorly prepared surface is the most frequent cause of premature failure. Never cut corners on the initial cleaning and patching phase.

Ignoring the critical wall junction. Failing to extend the waterproofing material straight up the junction wall is a guaranteed recipe for continued leaking.

Get Your Car Porch Waterproofed Properly

A properly waterproofed car porch gives you complete peace of mind and protects both your vehicle and the structural integrity of your home. If your car porch is currently leaking or you want to prevent future structural problems, Xoo Roofing provides professional flat roof waterproofing services across Petaling Jaya and the Klang Valley.

Contact us today for a free on-site assessment and detailed quotation. We will recommend the exact waterproofing system for your specific car porch and ensure it is applied to the absolute highest industry standards. This car porch waterproofing complete guide aims to help you make an informed decision for your property.
